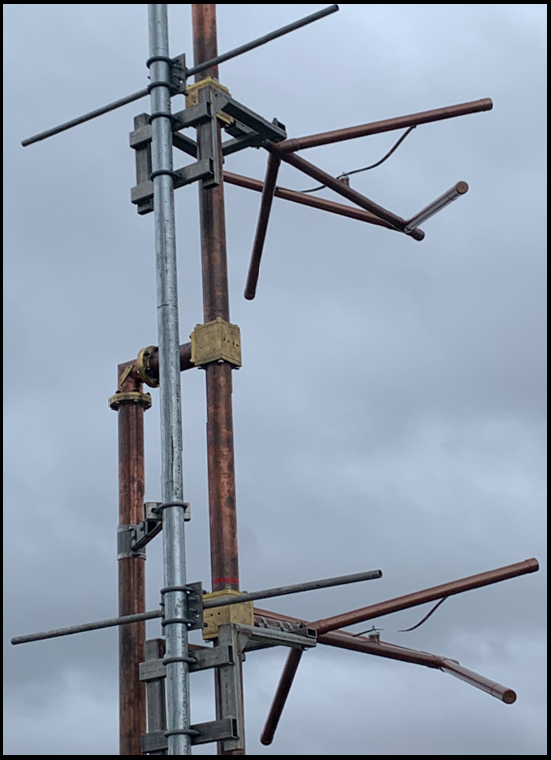

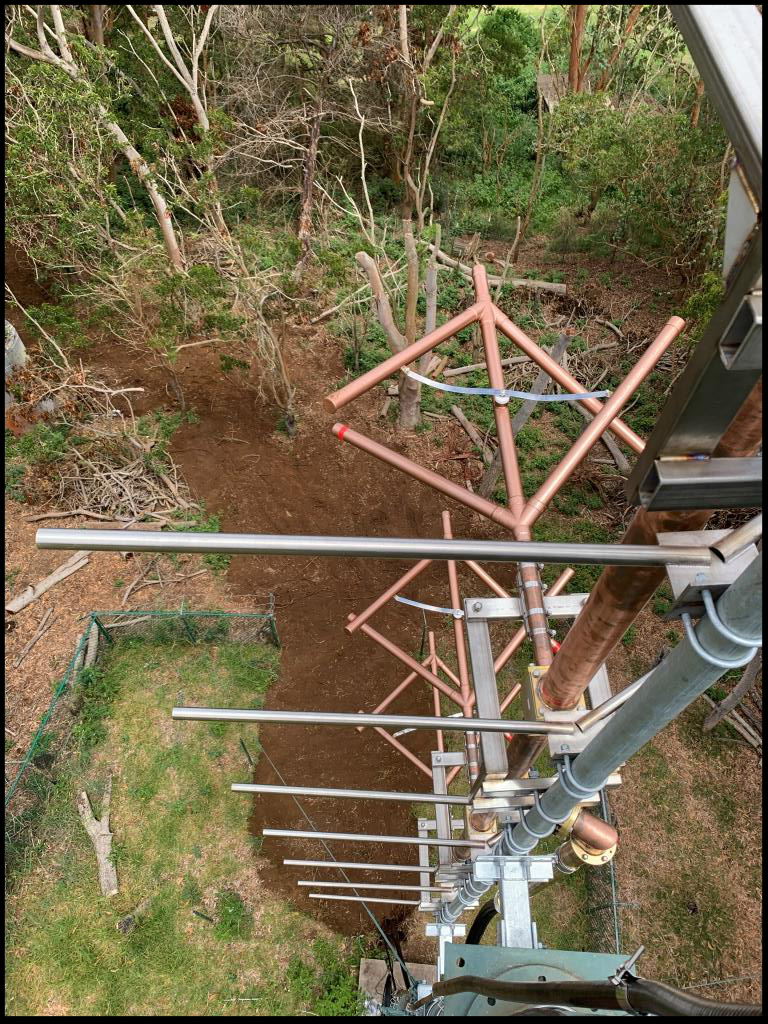

The IV-CP-M series product is a medium power broadband side mount antenna system. The IV-CP-M series provides an excellent solution for circular polarized FM station applications. This antenna is available in half wave and full wave configurations. Special spacing configurations are available upon request.
10 kW – 20 kW
- Frequency: 87 - 108 MHz
- Multiple Bay Systems Available
- High quality stainless steel, brass, and copper materials.
- Single Channel Systems
- Multi-Channel Systems
- Pressurized
|
SPECIFICATIONS |
|||
|
Frequency |
87– 108 MHz |
Connections Available: |
EIA: 1-5/8’’, 3-1/8’’ EIA, 4-1/16’’, 6-1/8’’ |
|
Input Power Rating |
10 kW - 20 kW |
|
|
|
Polarization |
Circular |
|
|
|
Azimuth |
±2dB free space |
|
|
|
VSWR |
1.2:1 or better |
|
|
|
MODELS |
|||||||
|
Model |
Power Rating |
Power Gain |
dB gain |
Weight |
Wind Load |
||
|
|
|
Full Wave |
Half Wave |
Full Wave |
Half Wave |
lbs |
lbs |
|
IV-CP-M-1 |
10 kW |
0.46 |
NA |
-3.37 |
NA |
55 |
59 |
|
IV-CP-M-2 |
20 kW |
0.95 |
0.73 |
-0.22 |
-1.36 |
125 |
181 |
|
IV-CP-M-3 |
20 kW |
1.55 |
1.02 |
1.90 |
0.08 |
182 |
271 |
|
IV-CP-M-4 |
20 kW |
2.13 |
1.35 |
3.28 |
1.30 |
220 |
318 |
|
IV-CP-M-5 |
20 kW |
2.72 |
1.63 |
4.35 |
2.12 |
315 |
508 |
|
IV-CP-M-6 |
20 kW |
3.25 |
1.89 |
5.12 |
2.76 |
375 |
614 |
|
IV-CP-M-7 |
20 kW |
3.90 |
2.19 |
5.91 |
3.40 |
457 |
756 |
|
IV-CP-M-8 |
20 kW |
4.28 |
2.61 |
6.31 |
4.17 |
510 |
836 |
|
IV-CP-M-9 |
20 kW |
5.05 |
2.79 |
7.03 |
4.46 |
573 |
955 |
|
IV-CP-M-10 |
20 kW |
5.54 |
3.14 |
7.44 |
4.97 |
635 |
1010 |
|
IV-CP-M-11 |
20 kW |
6.25 |
3.39 |
7.96 |
5.30 |
713 |
1188 |
|
IV-CP-M-12 |
20 kW |
6.57 |
3.70 |
8.18 |
5.68 |
768 |
1219 |
Notes:
- Rated at 2800 feet elevation. Derating begins after 2800 ft
- > 20 kW ratings available upon engineering review.
- Includes standard mounting brackets and attachment hardware.
- Antenna weight and wind load are approximate values for a typical structure. Final design loads may vary for the specific application.
