The P80g is a pure sine wave line interactive UPS that protects critical data and equipment from power problems while supplying clean and reliable network grade power
P80g units provide the highest efficiency available, with utility cost savings at all load levels. P80g flexible design accommodates tower or rack mounting.
Product Snapshot
- Available models: 3000VA, 5000VA
- 208VAC, 230VAC, 240/120VAC, and 208/120VAC
- Up to 5KVA of power, with internal batteries, all in a 2U package
- Extended battery runtimes with optional matching battery modules
- CE, RoHS certifications
- 3 years electronics, 3 years battery warranty (USA and Canada)
FEATURES
Auto restart—after full battery discharge, the P80g automatically restarts when utility power returns
99% efficient operation— high efficiency ECO mode lowers energy consumption

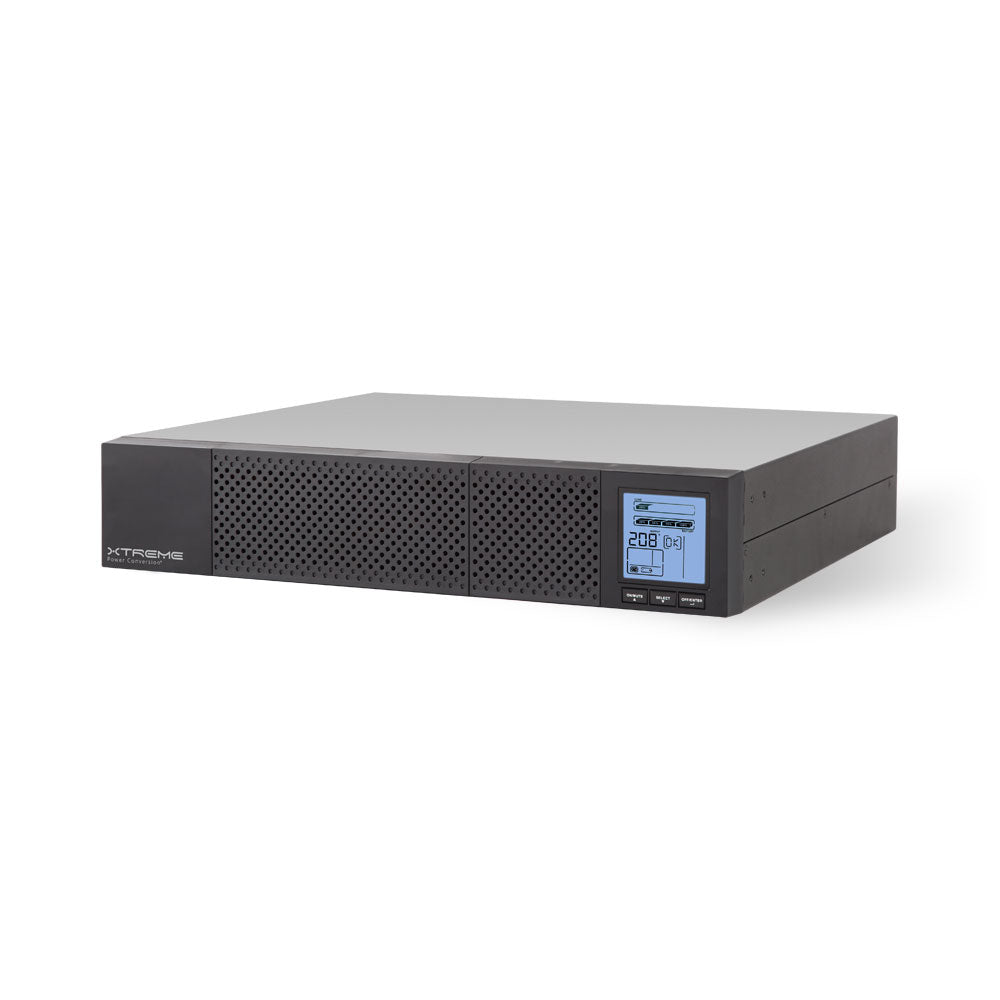

Smart LCD display—vital monitoring and precise infor- mation from the front panel
Programmable receptacle group—maximize uptime for critical loads and equipment by shedding less critical loads
Temperature compensa- tion—temperature compen- sated charging to prolong battery life and reduce overall costs
Hot swappable battery—easy to replace without interrupt- ing the load
Extended battery run- times—optional matching battery modules available for extended runtimes
Maintenance bypass—an optional XBDM bypass module enables the P80g-3000 to be replaced or serviced without interruption of power to critical loads
$50,000 load protection policy—protection against damaged connected equipment
| MODEL NUMBER | P80g-3000 | P80g-5000 | P80g-5KB3 | |
|---|---|---|---|---|
| CAPACITY | Power rating | 3000VA (2700W) | 5000VA (4500W) | 5000VA (4500W) |
| INPUT | Voltage nominal | 208/220/230/240VAC | 208VAC or 240VAC | |
| Voltage range | 162–290VAC | |||
| Frequency | 50/60Hz auto sensing | 60Hz | ||
| OUTPUT | Voltage | 208/220/230/240VAC | 208/120VAC or 240/120VAC | |
| Waveform | Pure sine wave | |||
| Transfer time (typical) | 2–6ms | |||
| Efficiency | Up to 99% ECO mode, 95% buck and boost mode | |||
| Harmonic distortion | 2% @ 100% linear load; 5% @ 100% non-linear load | |||
| BATTERY | Battery type | Sealed, maintenance-free lead acid | ||
| Battery quantity and size | (6) 12V 9AH | (6) 12V 580W at 5 min | ||
| Charging current | 1.5A max | |||
| Typical recharge | 4 hours to 90% | |||
| PHYSICAL | Dimensions (W x D x H) | 17.2 x 23.6 x 3.5 in (2U) | 17.2 x 23.6 x 7.0 in (4U) | |
| Weight | 61.9 lbs | 78.5 lbs | 137 lbs | |
| Line cord | 8 ft, detachable C19 to L6–20P | 6 ft, L6–30P | 6 ft, L6–30P | |

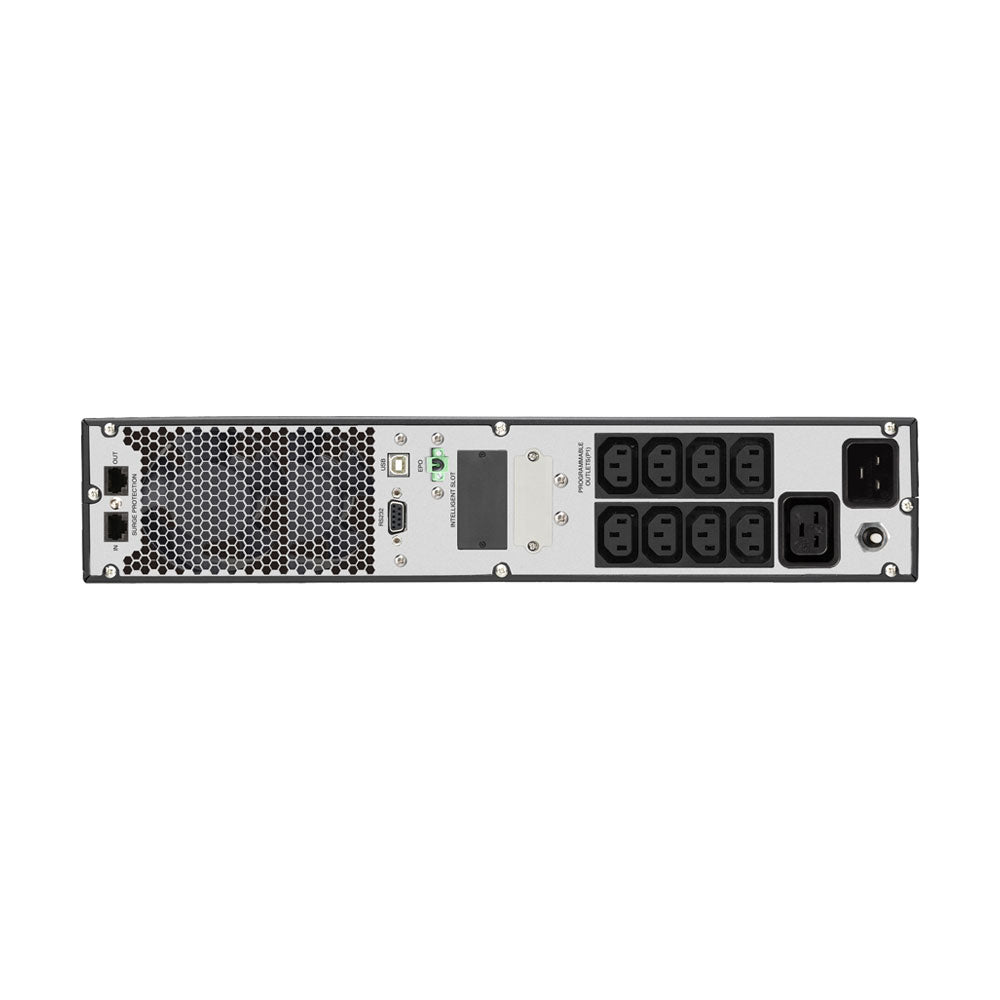

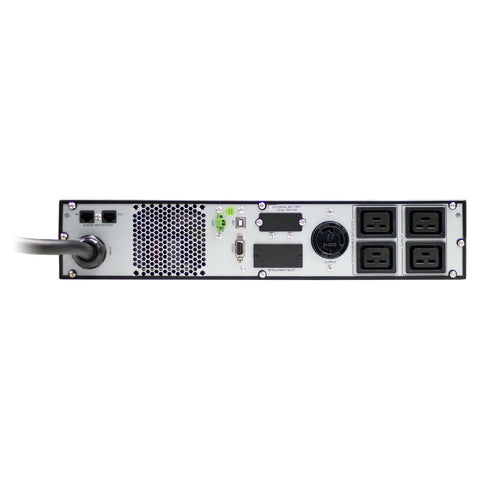

| Receptacles | (1) C19 + (8) C13 | (1) L6–30R + (4) C19 | (2) L6–30R + (2) L6–20R + (12) 5–15/20R | |
| Receptacle options | L6–30R, L6–20R, L6–15R, 6–15/20R | |||
| OPTIONAL BATTERY PACKS | Model number | P90-BP72 | P80-BP72X | |
| Dimensions (W x D x H) | 17.2 x 23.6 x 3.5 in | 17.2 x 23.6 x 3.5 in | ||
| Weight | 104.4 lbs | 110.4 lbs | ||
| Battery | (12) 12V 9AH / 72V | (12) 12V 580W at 5 min / 72V | ||
| ENVIRONMENT | Operating temperature | 32–104°F (0–40°C) | ||
| Audible noise | < 45dBA | |||
| Altitude | 11,500 ft above sea level | |||
| APPROVALS | CE, RoHS | |||
| WARRANTY | 3 years electronics, 3 years battery warranty (USA and Canada) | |||
| COMMUNICATIONSINTERFACE | RS-232, USB, EPO, intelligent slot for optional cards (Web/SNMP, Relay/dry contact, Modbus) | |||
| INCLUDED IN BOX | Software CD, horizontal brackets, tower pedestals, user manual | |||
| AVAILABLE OPTIONS | 5 year extended warranty, bypass distribution (XBDM), power distribution (XPDU), 4-post rail kit, 2-post shelf kit | |||
