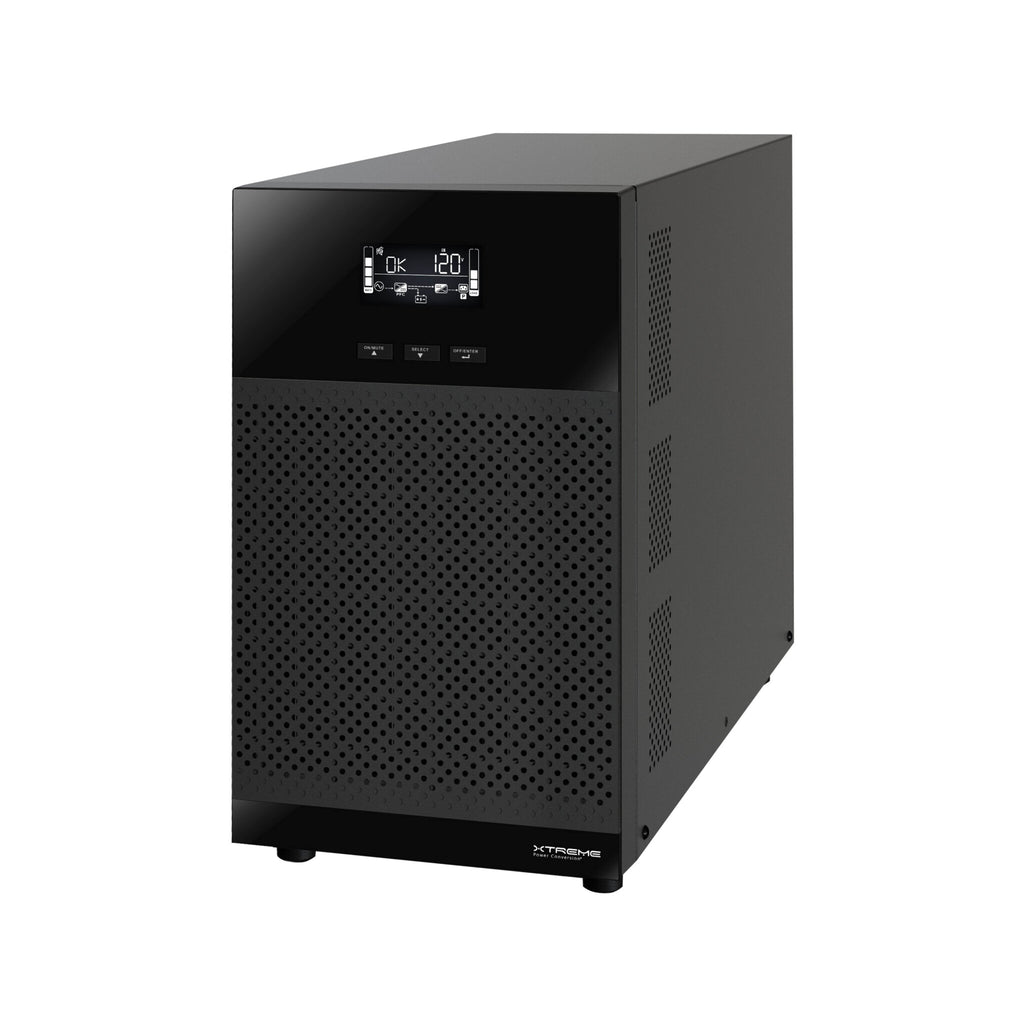

T91 UPS provides double conversion online power for light industrial applications, point of sale, servers, voice & data networks, and laboratories. T91 features unity output power factor to support up to 43% more critical loads than typical UPSs.
Extended battery runtimes are available from the T91 by adding up to seven matching battery packs.
T91 battery charger can be programmed to provide up to 8 amps of recharge current to insure batteries are recharged quickly and prepared for the next utility outage.
Product Snapshot
- Available 120V models: 700VA, 1000VA, 1500VA, 2000VA, 3000VA
- Available 208/230V model: 2000VA
- Extended battery packs available
- Controlled load segments
- UL, cUL, CE, RoHS, FCC B, FCC A
- 3 years electronics, 3 years battery warranty (USA and Canada)
FEATURES
Unity output power factor— T91 provides industry highest real power rating
Extended battery packs— optional matching battery cabi- nets available for runtimes up to 4 hours.
Charging current—2A to 8A, adjustable from LCD display
Fast Recharge—up to 95% in just 3 hours
Generator compatibility— wide input voltage and fre- quency windows allow reliable generator compatibility
Multiple communications capability—RS-232, USB, and optional Web/SNMP, Relay/dry contact and Modbus cards
Load shedding capabilities— maximize up time for critical loads and equipment by shedding less critical loads
Emergency power off—allows for compliance with the highest of application safety standards
$50,000 load protection policy—protection against damaged connected equipment
| MODEL NUMBER | T91-700 | T91-1000 | T91-1500 | T91-2000 | T91-3000 | T91i-2000 | ||
|---|---|---|---|---|---|---|---|---|
| INPUT | Capacity | 700VA (700W) | 1000VA (1000W) | 1500VA (1450W) | 2000VA (1930W) | 3000VA (2880W) | 2000VA (2000W) | |
| Voltage range | 55–150VAC* | 110–300VAC* | ||||||
| Frequency | 50/60Hz auto sensing | |||||||
| OUTPUT | Voltage | 120VAC nominal (100/110/115/127VAC selectable)*** | 208/220/230/240VAC*** | |||||
| Waveform | Sine wave, zero transfer time | |||||||
| Frequency | 50/60Hz auto sensing ≤ 1% | |||||||
| Efficiency | Up to 98% ECO Mode and 92% online mode | |||||||
| Overload capacity | 125% for 1 min, 150% for 10 sec | |||||||
| BATTERY | Battery type | (2) 12V9AH | (3) 12V9AH | (3) 12V9AH | (6) 12V9AH | (6) 12V9AH | (6) 12V9AH | |
| Recharge | 3 hours to 95% for internal battery with 2A charge current | |||||||
| PHYSICAL | UPS dimensions (W x D x H) | 5.6 x 15.6 x 8.6 in | 7.4 x 16.5 x 12.5 in | |||||
| UPS weight | 25.7 lbs | 30 lbs | 34.3 lbs | 63 lbs | 66 lbs | 62 lbs | ||
| Line cord | 6ft, 5-15P | 6ft, C19 to L5-20P | 6ft, L5-30P | 6 ft, C19 to L6-20P | ||||

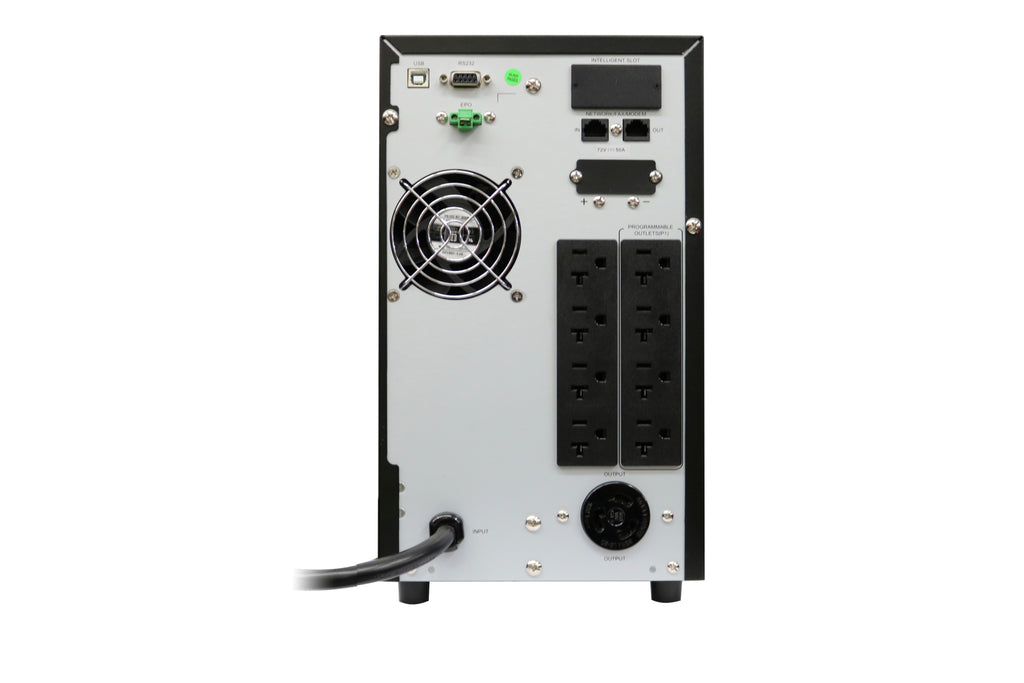

| Receptacles | (6) 5–15R* | (1) L5-20R + (8) 5-20 | (1) L5-30R + (8) 5-20R | (1) C19 + (8) C13 | ||||
| OPTIONAL BATTERY PACKS | Model number | N/A | T91-BP36A | T91-BP72A | ||||
| BP dimensions (W x D x H) | N/A | 5.6 x 15.6 x 8.6 in | 7.4 x 16.5 x 12.5 in | |||||
| BP weight | N/A | 44 lbs | 82 lbs | |||||
| ENVIRONMENT | Temperature | 32–104°F (0–40°C) | ||||||
| Audible noise | < 50 dB with fan speed control | |||||||
| Altitude | 11,500 ft above sea level | |||||||
| APPROVALS | UL1778 (cTUVus), FCC B, RoHS | UL1778 (cTUVus), FCC A, RoHS | CE, RoHS | |||||
| WARRANTY | 3 years electronics, 3 years battery warranty (USA and Canada) | |||||||
| COMMUNICATIONS INTERFACE | RS-232, USB, EPO, intelligent slot for optional cards (Web/SNMP, Relay/dry contact, Modbus) | |||||||
| INCLUDED IN BOX | ViewPower monitoring software CD, USB cable, user manual | |||||||
| AVAILABLE OPTIONS | Extended warranty, bypass distribution (XBDM), power distribution (XPDU) | |||||||
*T91-2000 is also available with an L5–20P input and (1) L5–20R + (10) 5–15R output. **Depending on load level. ***T91 capacity derates 10% at 110VAC and 20% at 100VAC output voltage.
