THREE PHASE, DRIVE ISOLATION TRANSFORMERS
With today’s technological advances in solid-state power control devices, the use of AC and DC variable speed drives has proliferated in many industrial markets. General purpose distribution transformers are not adequate for this type of application.
HPS Drive Isolation Transformers are designed to meet the rugged demands of both AC and DC variable speed drives and also to provide the required voltage change. The separate primary and secondary windings provide electrical isolation between the incoming line and the SCR load. The windings are designed to withstand overcurrent of 150% of the rated load for 60 seconds or 200% of the rated load for 30 seconds.
Drive Isolation Transformers are sized to match standard motor horsepower and voltage ratings.
Standard sizes range from 5 to 600 HP in six standard voltages.
Products available:

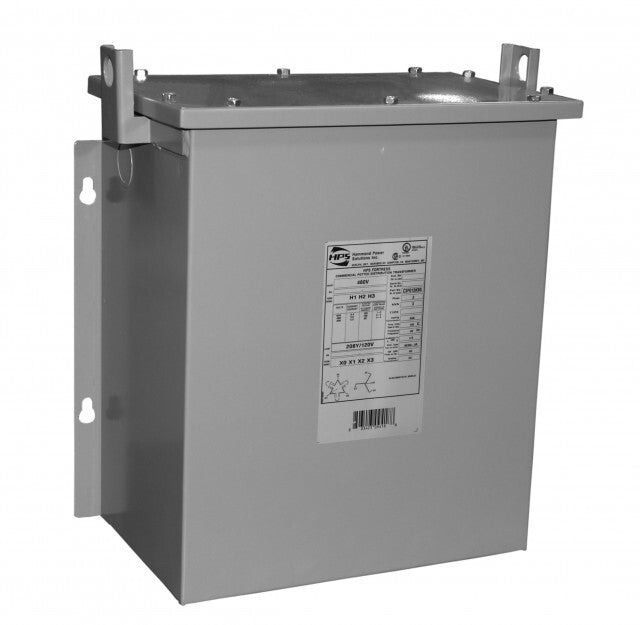

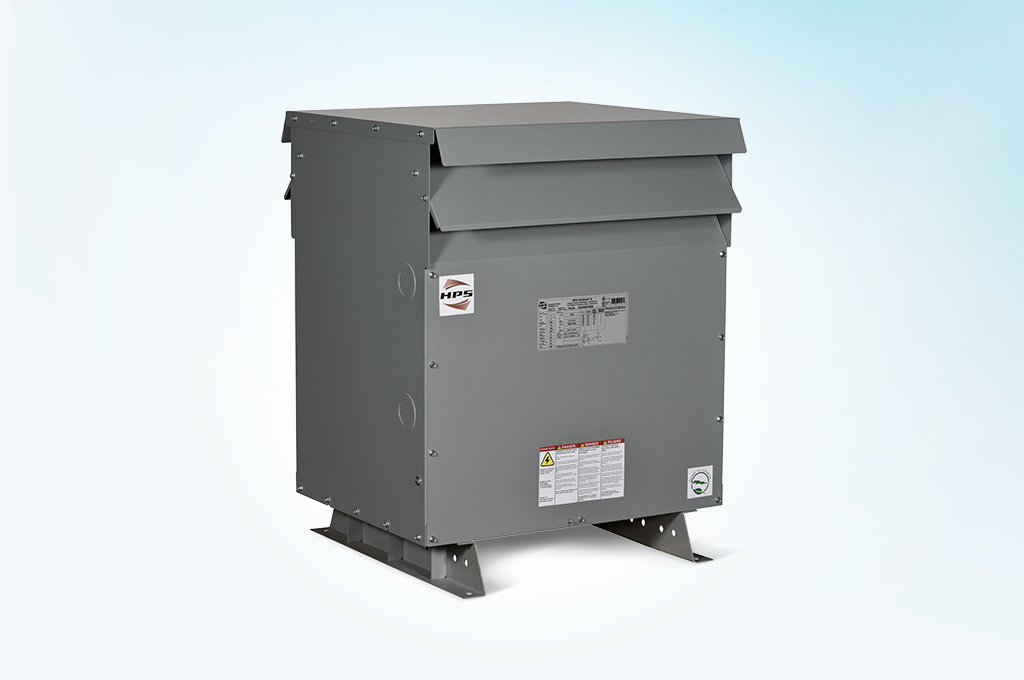

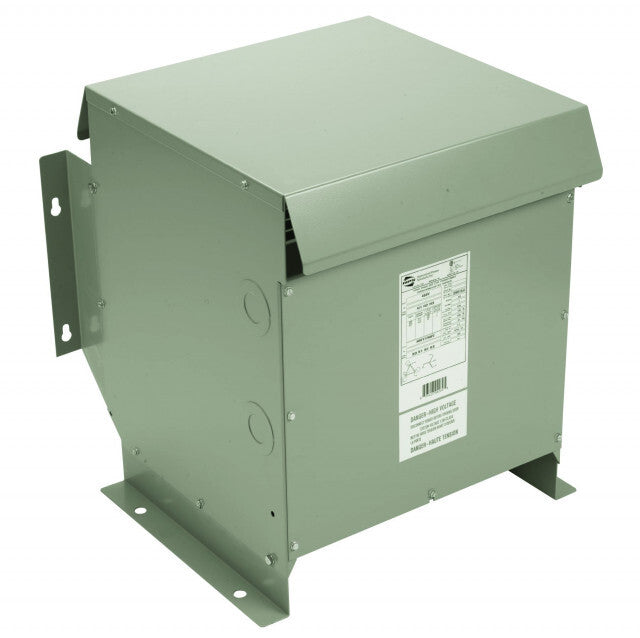

Hammond Power Isolation 15kVA Transformer 240-480V Delta-Wye
Model Number: ARSG3A0015DK
Hammond Power Isolation 30kVA Transformer 240-480V Delta-Wye
Model Number: ARSG3A0030DK
Hammond Power Isolation 45kVA Transformer 240-480V Delta-Wye
Model Number: ARSG3A0045DK
Hammond Power Isolation 75kVA Transformer 240-480V Delta-Wye
Model Number: ARSG3A0075DK
Hammond Power Isolation 112kVA Transformer 240-480V Delta-Wye
Model Number: ARSG3A00112DK
